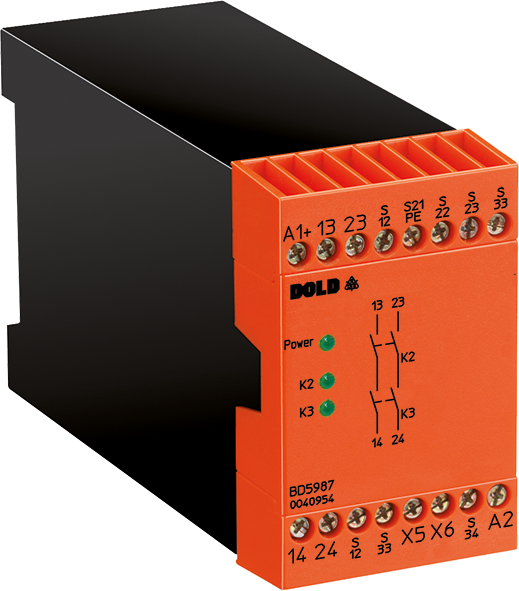

DOLD 0043905: BD5987.02/001 AC48V 50/60HZ Emergency stop module
The BD 5987 is used to interrupt a safety circuit in a safe way. It can be used to protect people and machines in applications with e-stop buttons and safety gates. The BD 5987.02/301 can be used as electronic replacement of a safety switch according to EN 81-20, section 5.11.2.2.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Type: | BD 5987 |
| Cat. / PL Acc. To EN ISO 13849-1: | 4/e |
| SIL Acc. To IEC/EN 62061: | 3 |
| Output contacts max.: | 2 NO contacts |
| Nominal voltage: | AC, DC |
| Approvals: | UL-Recognized |
| Thermal current Ith max.: | 10 A |
| 1- / 2-channel: | 1, 2 |
| Connection: | Screw terminals |
| Cross Fault Detection: | Yes |
| Suited as safety gate monitor: | Yes |
