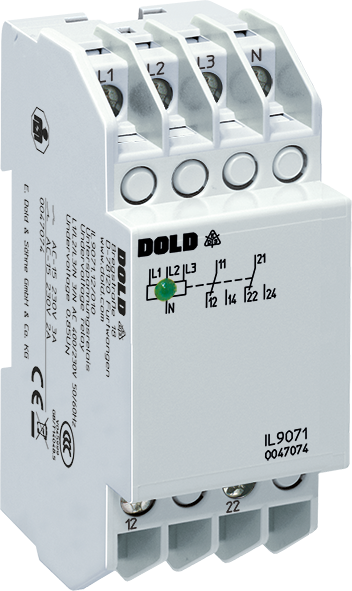

DOLD 0043070: IL9071.12 3/N AC400/230V 0,85UN4% Undervoltage Relay
The undervoltage relays IL 9071 and SL 9071 of the VARIMETER series monitor undervoltage, phase failure, asymmetry and missing neutral conductor in three-phase or single-phase networks. The measurement is very simple and without extensive wiring, as no separate auxiliary supply is necessary. The early detection of up-coming break downs and preventive maintenance avoid expensive damages. As user you profit from the reliability and availability of your plant.
| Attribute | Value |
|---|---|
| Width: | 35 mm |
| Enclosure design: | Distribution board |
| Type: | IL 9071 |
| 1- / 3-phase: | 1, 3 |
| Auxiliary voltage: | Without |
| Output Contacts: | 2 C/O contacts |
| Operate Delay: | Yes |
| Nominal voltage max.: | 3/N AC 500 / 290 V |
