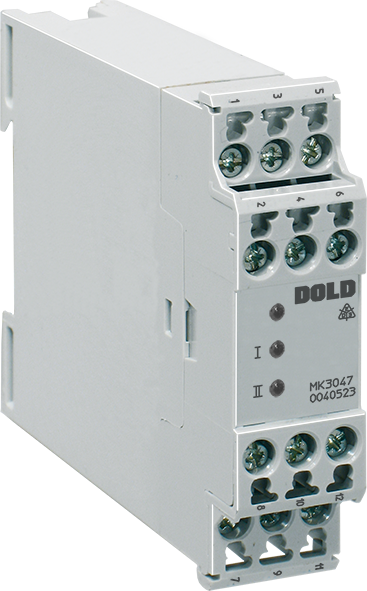

DOLD 0040522: MK3047/102 DC24V Interface relay
The MK 3047 is an electromechanical relay with 1 or 2 volt free contacts. it is used to interface between control circuits and load circuits (e. g. contactors or valves). When the relay is energised this is indicated by an LED.
| Attribute | Value |
|---|---|
| Width: | 22,5 mm |
| Enclosure design: | Switch cabinet |
| Type: | MK 3047 |
| Output contacts max.: | 1 NO contact, 1 NC contact |
| Nominal voltage: | DC |
| Thermal current Ith max.: | 6 A |
| Connection: | Screw terminals |
