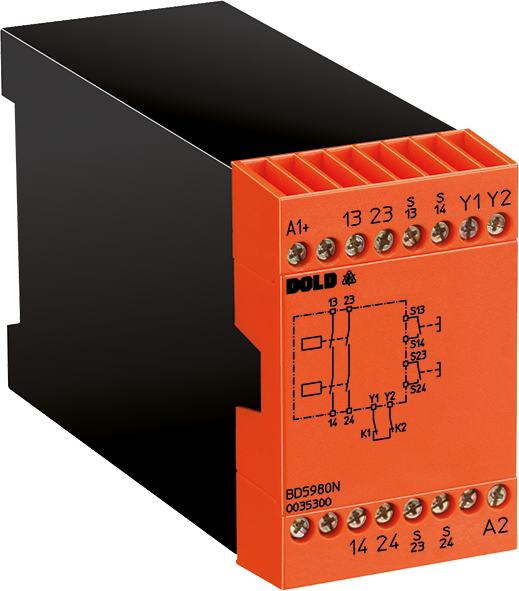

DOLD 0038997: BD5980N.02 AC50/60HZ 24V Two-hand safety relay
The BD 5980N enables and disables a safety circuit in a safe way. It is used to protect people and machines in applications with 2-hand buttons on presses for metal products as well as for other production machinery with dangerous closing movements according to EN 574 Kategorie III A.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Type: | BD 5980N |
| Cat. / PL Acc. To EN ISO 13849-1: | 1/c |
| SIL Acc. To IEC/EN 62061: | 1 |
| Output contacts max.: | 2 NO contacts |
| Nominal voltage: | AC, DC |
| Approvals: | UL-Recognized |
| Thermal current Ith max.: | 5 A |
| Connection: | Screw terminals |
| Safety integrity level according to EN ISO 13851: | lll A |
