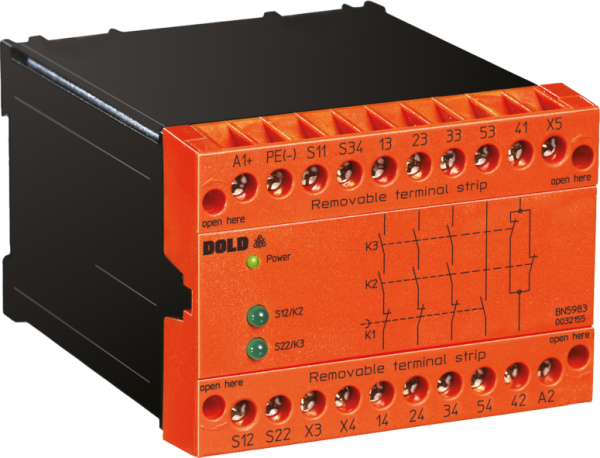

DOLD 0038447: BN5983.53/104 DC24V Emergency stop module
| Attribute | Value |
|---|---|
| Width: | 100 mm |
| Type: | BN 5983 |
| Cat. / PL Acc. To EN ISO 13849-1: | 4/e |
| SIL Acc. To IEC/EN 62061: | 3 |
| Output contacts max.: | 1 NC contact, 3 NO contacts |
| Nominal voltage: | AC, DC |
| Approvals: | UL-Recognized |
| Thermal current Ith max.: | 10 A |
| 1- / 2-channel: | 1, 2 |
| Connection: | Pluggable screw terminals |
| Suited as safety gate monitor: | Yes |
