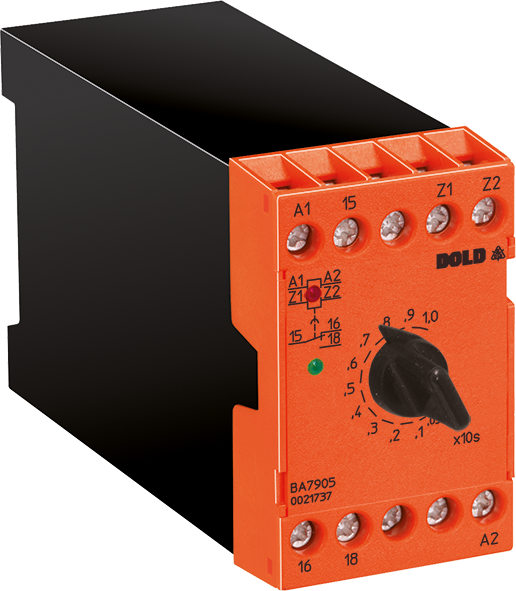

DOLD 0022727: BA7905.81 AC50/60HZ 230V 1,5-30S Timer, On-delay
The timer BA 7905 can be used to switch devices and controls with an adjustable on delay. With these timer the start behaviour of machine parts e. g. the starting of motors can be influenced. With a potentiometer the time delay can be adjusted simply over a large setting range.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Enclosure design: | Switch cabinet |
| Type: | BA 7905 |
| Output Contacts: | 2 C/O contacts |
| Time function(s): | On-delay |
| Nominal voltage: | AC, DC |
| Time range: | 0,05 s – 300 s |
