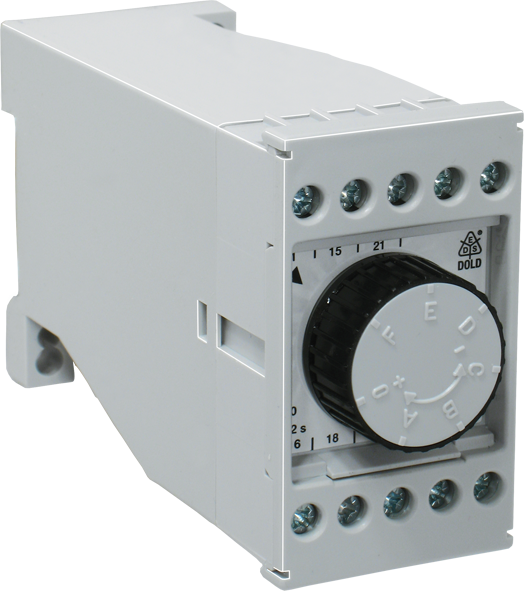

DOLD 0010659: AA7562.32 AC50HZ 110V 0,2-30S Timer, Off-delay
With the release delayed timer AA 7562 the delay is achieved by a pair of bellows that is compressed by a magnet system. With an adjustable regulating system the time for the expansion of the bellows is defined. The bellow then operates the switch contacts.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Enclosure design: | Switch cabinet |
| Type: | AA 7562 |
| Output Contacts: | 2 C/O contacts |
| Time function(s): | Off-delay, without control signal |
| Nominal voltage: | AC, DC |
| Time range: | 0,2 s – 180 s |
