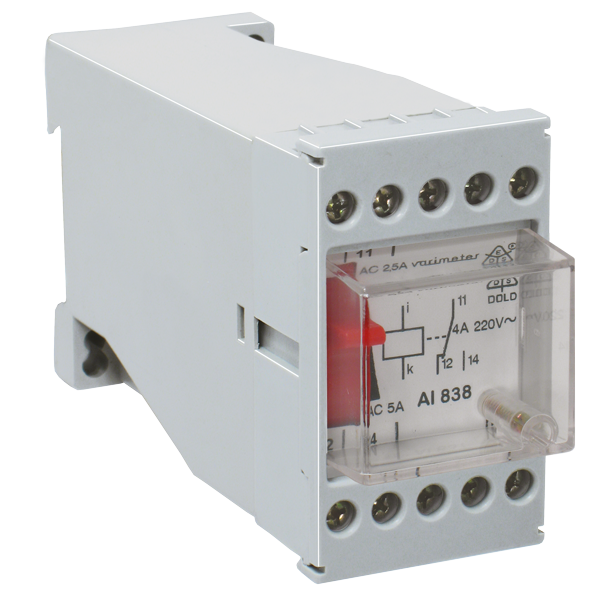

DOLD 0008849: AI 838 DC4-8A RW5% Overcurrent Relay
On the overcurrent relay AI 838 the scale is adjusted to the response value. When the current exceeds the setting value the relay switches on. The contact resets, as soon as the current goes under the setting value x hysteresis.
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Enclosure design: | Switch cabinet |
| Type: | AI 838 |
| 1- / 3-phase: | 1 |
| Measuring range: | AC, DC 0,5 – 16 A |
| Auxiliary voltage: | Without |
| Output Contacts: | 1 C/O contact |
