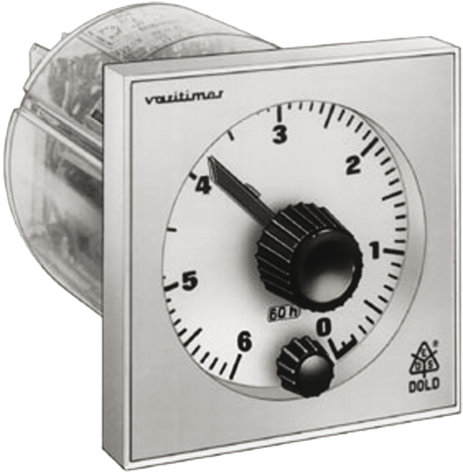

DOLD 0004677: EH7616.24 AC50/60HZ 24V 0,15S-30H Timer, On-delay
The AA 7610, EC 7610 and EF 7610 time relays from the MINITIMER series are suitable for switching devices and controls with a pre-programmed response delay. These time relays can be used, for example, to take into account the individual start-up behaviour of system components such as the starting of motors. The delay times can be set easily and over large setting ranges via the infinitely variable rotary switches. AA-, EC-, EF-, and EH 7616 devices have adjustable time ranges.
| Attribute | Value |
|---|---|
| Width: | 96 mm |
| Enclosure design: | Front panel mounting |
| Type: | EH 7616 |
| Output Contacts: | 1 C/O contact |
| Time function(s): | On-delay |
| Nominal voltage: | AC, DC |
| Time range: | 0,15 s – 60 h |
