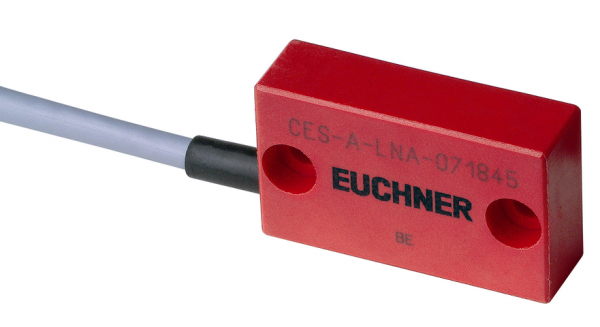

Euchner 071845E | CES-A-LNA-05V : Read Head
The CES-A-LNA-05V is a precision read head used for accurate position sensing in automation systems.
| Attribute | Value |
|---|---|
| Connection Type: | hard-wired encapsulated connecting cable |
| Installation Orientation: | any |
| Degree of protection: | IP67/IP69K |
| Item designation: | CES-A-LNA-05V-071845 |
| Gross weight: | 0,197kg |
| ECLASS: | 27-27-24-03 Safety-related transponder switch |
| Power Supply: | via evaluation unit |
| Cable ambient temperature (dynamic): | -5 … +70 °C |
| Cable ambient temperature (static): | -25 … +70 °C |
| Connecting cable: | PVC, length 5m, Ø 4.6 mm, with crimped ferrules |
| Method of Operation: | inductive |
| Product Number | Variant Description |
|---|---|
| CES-A-LNA-05V : Read Head | CES-A-LNA-05P : Read Head |
