Insulation Monitoring
Importance of Insulation Monitoring Devices
Ensuring Safety and Efficiency in Industrial Environments
Insulation monitoring devices (IMDs) are essential safety components in modern electrical systems, particularly across industrial environments where continuous operation, personnel safety, and regulatory compliance are critical. These devices continuously monitor insulation resistance between active conductors and earth, detecting degradation early and preventing dangerous insulation faults before they escalate into system failures, fire hazards, or electric shock incidents.
Modern IMDs—such as the Dold Insulation Monitor range and VARIMETER IMD solutions—operate reliably across AC voltage and DC systems, supporting mixed networks with complex system leakage capacitance, long cable runs, and high connected load values. By providing continuous supervision rather than periodic testing, insulation monitoring ensures electrical safety, operational efficiency, and compliance with standards such as DIN VDE 0100-410 and DIN VDE 0100-710.
Preventing Equipment Stoppages Through Continuous Monitoring
Unexpected equipment stoppages are costly and disruptive, especially in healthcare facilities, manufacturing plants, data centres, rail systems, and electric vehicle infrastructure. Insulation monitoring devices reduce downtime by identifying insulation deterioration before it causes a trip or failure.
In systems with high leakage capacitance, fluctuating mains voltages, or sensitive electronics, IMDs provide stable response values independent of load variation. Integration with measuring relays, Dold monitor relays, and residual current monitors allows faults to be localised quickly, improving maintenance response and reducing mean time to repair.
This capability is particularly valuable in installations powered by grounded power supplies during commissioning, maintenance, or transitional operating modes.
Reducing Risk of Electric Shock Accidents
IMDs significantly reduce the risk of electric shock by detecting insulation faults before dangerous touch voltages occur. This is critical in unearthed (IT) systems where nominal voltage remains present during a first fault.
By monitoring asymmetrical insulation faults, voltage-current-insulation resistance relationships, and pickup impedance behaviour, IMDs act as early fault indicators. Visual and digital fault indicators, combined with relay outputs, allow alarms to be issued without interrupting power.
This function is essential in environments where safety must be maintained without immediate disconnection—such as hospitals, tunnels, mining, and critical infrastructure.
Applications of Insulation Monitoring Devices
DC Charging Stations and Electric Vehicles
Electric vehicles and DC charging stations rely heavily on insulation monitoring to ensure safe operation under high DC and AC voltage conditions. IMDs certified for insulation monitor AC 50–400 Hz operation are widely used in fast-charging systems, where insulation failures can pose severe risks.
Advanced systems integrate VARIMETER EDS insulation fault location technology, allowing rapid identification of faulted feeders without shutting down the entire charging network.
Grounded Power Systems (TN and TT Systems)
While insulation monitoring is mandatory in IT systems, IMDs are increasingly used in grounded power supplies during startup, testing, and maintenance. Temporary insulation monitoring helps validate insulation integrity before energisation and complements traditional protection methods.
These installations often require compatibility with auxiliary voltage supplies and defined voltage sensing range limits to ensure accurate monitoring across varying supply voltage conditions.
Unearthed Networks (IT Systems)
In IT systems, insulation monitoring is non-negotiable. These networks are common in hospitals, chemical plants, rail infrastructure, and safety-critical industrial installations.
IMDs in these systems continuously track insulation performance across changing operating conditions, connected load profiles, and rated operating frequency ranges. The display of the insulation value—via LED, LCD, or SCADA—provides immediate insight for operators and maintenance personnel.
Measurement Techniques in Insulation Monitoring
Superimposition of Measuring DC Voltage
This established method applies a low-level DC voltage to the system and measures the resulting current to calculate insulation resistance. It is robust, reliable, and largely independent of system voltage or frequency.
This technique is widely used in Brand Dold devices such as the DOLD RN 5897/020 (Order No. DOLD 0069088) and other VARIMETER IMD products, offering consistent performance across industrial environments.
AMP Method (Adapted Measuring Pulse)
The AMP method improves accuracy in mixed AC/DC systems by injecting high-frequency pulses. It is particularly effective in installations with high system leakage capacitance, variable frequency drives, or fluctuating loads.
This method excels at detecting intermittent and asymmetrical insulation faults that conventional techniques may miss, improving detection reliability without false alarms.
Innovations in Insulation Monitoring
Remote Monitoring and Digital Integration
Modern IMDs support Modbus RTU, Ethernet, and serial interfaces, allowing integration with PLCs, SCADA, and security software platforms. Remote access enables monitoring across distributed sites, logging insulation trends, and correlating alarms with an incident number or numéro d’incident for audit and compliance reporting.
Browser-based dashboards may include options such as suppression des cookies handling, browser version compatibility, and secure user access for enterprise-grade deployments.
High-Frequency and Fast Response Monitoring
Advanced devices provide fast response values, immunity to noise, and stable operation across a wide voltage sensing range. This is essential in installations with fluctuating mains voltages, large leakage capacitance, or sensitive electronics.
Dual alarm thresholds ensure graded response—warning before critical failure—supporting operational safety without unnecessary shutdowns.
Featured Insulation Monitoring Devices
DOLD RN 5897/020 – Insulation Monitoring Device
Designed for unearthed AC, DC, and AC/DC systems, the DOLD RN 5897/020 provides reliable insulation fault detection with two changeover contacts, adjustable pickup impedance, and DIN-rail mounting type. It supports asymmetrical insulation faults and integrates easily with relay technology in control panels.

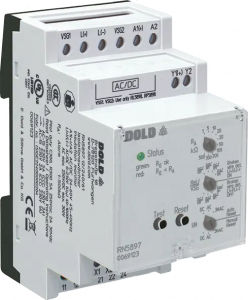

DOLD RN 5897/240 – Universal Insulation Monitoring
Supporting nominal voltages up to 500 V, this device offers fast fault detection, clear status indication, and compatibility with auxiliary voltage supplies. It is ideal for both retrofits and new installations in industrial environments.
DOLD RN 5897/320 – Advanced Insulation Monitoring
Optimised for IT systems and photovoltaic applications, this model supports wide frequency ranges, symmetrical and asymmetrical fault detection, and integration with VARIMETER RCM and residual current monitors via differential current transformer interfaces.
Industry-Specific Adaptations and Reliability
Different industries demand different response values, pickup impedance levels, mounting types, and voltage sensing ranges. Dold monitor relays are designed to adapt to marine, mining, healthcare, rail, and energy applications while maintaining compliance with international standards.
By combining insulation monitoring with measuring relays, VARIMETER RCM, and residual current monitors, operators achieve layered protection and long-term reliability.
Enhancing Reliability and Economic Efficiency
Trend Monitoring and Predictive Maintenance
IMDs capable of storing and transmitting insulation data enable predictive maintenance strategies. By analysing insulation trends over time, maintenance teams can intervene early, reducing costs and improving uptime.
This data can be combined with connected load information, rated operating frequency, and environmental conditions to improve decision-making and asset lifecycle management.
Complementary Safety Components and Monitoring Solutions
For complete protection, insulation monitoring is typically combined with safety relays, safety PLCs, current monitors, voltage monitoring relays, under-voltage relays, and phase monitoring devices. Together, these systems ensure stable operation across varying mains voltages and industrial operating conditions.
Insulation monitoring devices are a cornerstone of modern electrical safety. Whether deployed in IT systems, grounded power supplies, electric vehicle infrastructure, or complex industrial installations, IMDs from Brand Dold deliver early fault detection, regulatory compliance, and long-term operational reliability.
By integrating VARIMETER IMD technology, differential current transformers, residual current monitors, and advanced relay technology, operators gain full visibility into insulation health—protecting people, equipment, and critical processes.
