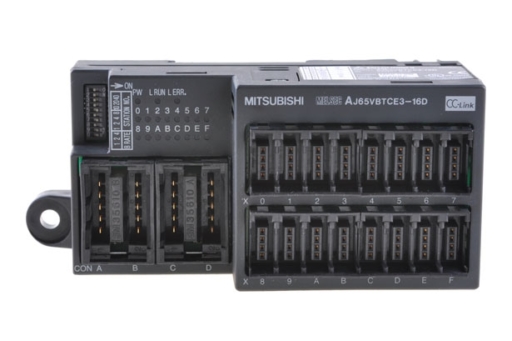

Mitsubishi AJ65VBTCE3-16D: 16-Point 24VDC Sink Input Module
16-point 24VDC sink input module for advanced Mitsubishi control systems.
| Attribute | Value |
|---|---|
| Series: | CC-LINK |
| Type: | REMOTE DC INPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Occupied Stations: | 1 |
| Integrated Digital Inputs: | 16 |
| Rated Input Voltage (VDC): | 24 |
| Wiring: | CONNECTOR |
| Int. Current Consumption (A): | 0,035 |
| Depth (mm): | 45,5 |
| Weight (kg): | 0,1 |
| Width (mm): | 100 |
| Height (mm): | 50 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 90 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 3 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
