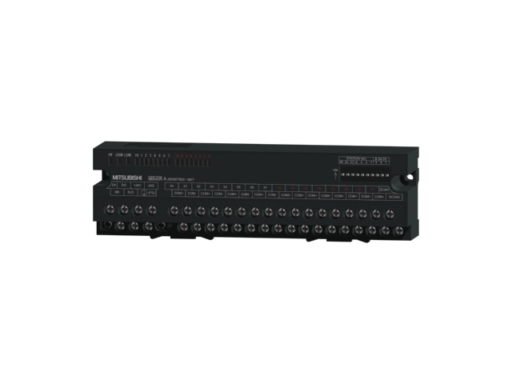

Mitsubishi AJ65SBTB32-16DT: 16-Point (8 in / 8 out) 24VDC Sink I/O Module
Mitsubishi 16-point, 8 in/out, 24VDC sink I/O module, AJ65SBTB32-16DT.
| Attribute | Value |
|---|---|
| Series: | CC-LINK |
| Type: | REMOTE I/O COMBINED MODULE |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Occupied Stations: | 1 |
| Integrated Digital Inputs: | 8 |
| Integrated Digital Outputs: | 8 |
| Rated Input Voltage (VDC): | 24 |
| Rated Load Voltage (VDC): | 24 |
| Output Type: | TRANSISTOR |
| Output Logic: | SINK |
| Wiring: | SCREW |
| Int. Current Consumption (A): | 0,05 |
| Depth (mm): | 40 |
| Weight (kg): | 0,25 |
| Width (mm): | 179 |
| Height (mm): | 50 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| UKCA: | COMPLIANT |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
