Description

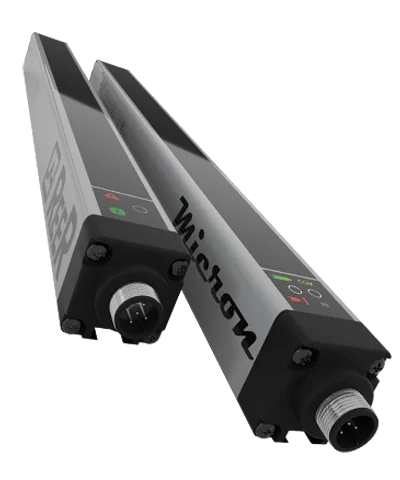

The ReeR MICRON MI 750 AC has a controlled height of 745mm with a 5mm resolution, and a maximum range of 2.5m.
It comes standard with 2 analogue outputs of 4-20mA, and 2 programmable static outputs (PNP). The maximum length of connection cables between these light curtains and their respective interface is 100 metres.
Specifications
Power supply (VDC): 24 ± 20%
Controlled height (mm): 745
Overall dimensions (mm): 823 x 28 x 30
Number of beams: 150
Connections: M12 5-pole connector (emitter), M12 8-pole connector (receiver), M5 4-pole connector for programming interface
Outputs: 2 analog outputs (0-10 VDC) with programmable functions + 2 solid state 0 or 24 V programmable digital outputs (PNP 100 mA at 24 VDC)
Signalling: LEDs for light curtain’s status and diagnostics
