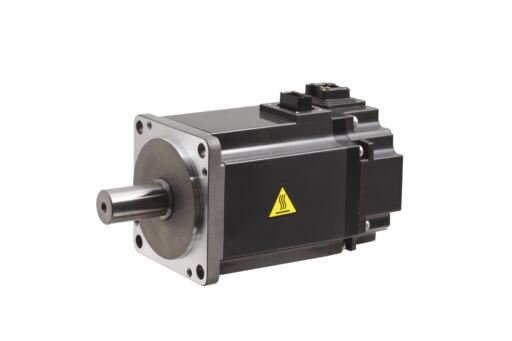

Mitsubishi HG-KR43: 400W Servo Motor
400W Mitsubishi HG-KR43 Servo Motor for precise, swift mechanical movement.
| Attribute | Value |
|---|---|
| Series: | MELSERVO-J4 |
| Type: | HG-KR |
| Power Supply (V): | 200 |
| Rated Capacity (kW): | 0,4 |
| Inertia: | LOW INERTIA |
| Rated Torque (Nm): | 1,3 |
| Maximum Torque (Nm): | 4,5 |
| Rated Speed (rpm): | 3.000 |
| Inertia (kg*cm2): | 0,371 |
| Brake: | NO |
| Shaft Type: | STRAIGHT SHAFT |
| Current Type: | AC |
| Encoder Resolution (p/rev): | 4.194.304 |
| Maximum Speed (rpm): | 6.000 |
| Protection Class: | IP65 |
| Encoder Type: | 22-BIT |
| Depth (mm): | 98,3 |
| Weight (kg): | 1,4 |
| Width (mm): | 60 |
| Height (mm): | 77,1 |
| CE: | COMPLIANT |
| EAC: | COMPLIANT |
| UL/cUL: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 1 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 110 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 18,8 |
| Wood (g): | 0 |
| Other paper (g): | 0,4 |
| REACH Limit Exceeded: | NO |
| REACH Substance CAS Number: | 108-78-1, 119313-12-1, 3147-75-9, 7439-92-1 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
