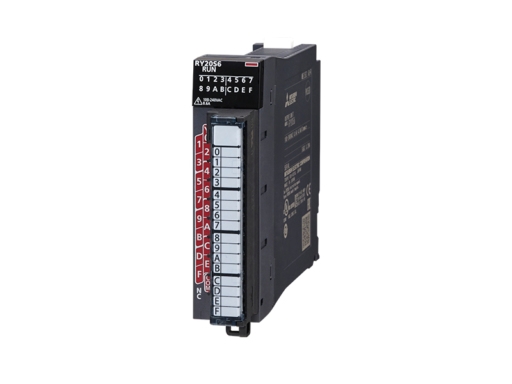

“Mitsubishi Triac Output RY20S6 – 16 Points: 100-240V AC/0.6A”
Triac output, 16 points: 100Â…240 V AC/0.6 A
| Series: | MELSEC IQ-R SERIES |
| Type: | TRANSISTOR OUTPUT (SINK) |
| Current Type: | DC |
| Depth (mm): | 129 |
| Weight (kg): | 0,12 |
| Width (mm): | 27,8 |
| Height (mm): | 106 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 45 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 3 |
| Wood (g): | 0 |
| Other paper (g): | 26 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| REACH Substance CAS Number: | 71868-10-5, 75980-60-8 |
| Int. Current Consumption (A): | 0,14 |
| Occupied I/O Points On PLC: | 16 |
| Wiring: | SPRING CLAMP |
| Power Supply (V): | 24-Dec |
| Integrated Digital Outputs: | 16 |
| Output Type: | TRANSISTOR |
| Rated Load Voltage (VDC): | 24-Dec |
| Output Logic: | SINK |
