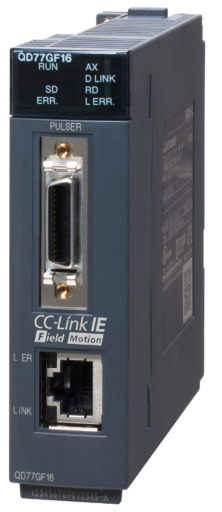

Mitsubishi QD77GF16: Q-Series Motion Control Module (16 Axes)
Mitsubishi QD77GF16: High-capacity, Q-Series, 16-Axes Motion Control Module.’
| Attribute | Value |
|---|---|
| Type: | SIMPLE MOTION MODULE |
| Command Interface: | CC-LINK IE FIELD NETWORK |
| Number of Axes: | 16 |
| Program Capacity: | 600 |
| Ethernet Port: | 1 |
| Inputs: | 4 |
| Program Capacity Unit: | POSITIONING DATA / AXIS |
| Series: | MELSEC-Q SERIES |
| Depth (mm): | 115 |
| Weight (kg): | 0,26 |
| Width (mm): | 27,4 |
| Height (mm): | 98 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| UL/cUL: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 55 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 20 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| REACH Substance CAS Number: | 1317-36-8, 80-05-7, 7439-92-1, 1303-86-2 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
