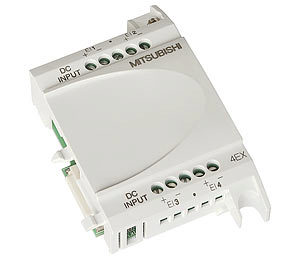

Mitsubishi AL2-4EX: Alpha Series PLC Expansion Module
Expansion module for the Alpha Series PLC Mitsubishi AL2-4EX.
| Attribute | Value |
|---|---|
| Series: | ALPHA2 SERIES |
| Type: | EXTENSION UNIT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Occupied I/O Points on PLC: | 4 |
| Integrated Digital Inputs: | 4 |
| Depth (mm): | 24,5 |
| Weight (kg): | 0,05 |
| Width (mm): | 53,1 |
| Height (mm): | 90 |
| CE: | COMPLIANT |
| Shipping Approvals: | DNV |
| EAC: | NON-COMPLIANT |
| UL/cUL: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 0 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 26 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
