Electrical cable couplers are essential components in power and signal distribution, designed to create secure connections between cables in industrial environments. These connectors enable the safe and efficient transmission of power across electrical systems, whether temporary or permanent. From industrial cable connectors to wire & cable assemblies, couplers play a critical role in maintaining reliable connection and maximum flexibility in high-demand sectors.
Venus Automation supplies a focused product range of heavy-duty connectors through the Palazzoli X-CEE and ROTOR series, engineered for reliable use across both standard and extreme operating conditions. These industrial connectors are purpose-built to handle variable operating voltages in demanding electrical installations, offering robust performance and safe wiring even in the harshest environments. Featuring durable materials and conductive surfaces, these Palazzoli coupler assemblies ensure secure, long-lasting connections where heavy-duty connectors are non-negotiable.
Key Features and Design Specifications
Modern electrical cable couplers are engineered for harsh conditions, offering robust housings, push-in connection options, and materials like plastic housing or thermoplastic for better electrical conductivity. Key specifications include:
- Voltage ratings such as 230V coupler and 400V electrical connector
- Current capacities ranging from 16A to 125A
- Clamping ranges for various cable diameters
- Contact type and terminal type suited to high-load or precision applications
Their compact design and compact interface support space-saving installations in control panels or field setups.
Benefits of Using Industrial Cable Couplers
The advantages of using industrial power couplers include:
- Reliable transmission of power and data in dynamic environments
- Degree of protection up to IP66 couplers and IP67 couplers for harsh environments
- Quick and easy setup using industrial quick disconnect plugs
- Compatibility with a wide range of cable types, including cable harnesses and component connectors
These couplers are ideal for applications where electrical safety, reliable data transmission, and maximum safety are non-negotiable.
Types of Electrical Couplers Available
Switched vs Unswitched Couplers
Switched cable couplers, such as the switched socket coupler, include built-in switches that enable or disable the power flow. These are vital in safety-critical applications. Unswitched variants are simpler and often used in control cabinet wiring or passive transmission setups.
2P+E and 3P+N+E Coupler Variants
Depending on the phase configuration, couplers come in:
- 2P+E cable connector: Used in single-phase connections, often in construction site cable connector setups.
- 3P+N+E coupler: Suitable for heavy-duty connectors and industrial applications requiring three-phase power.
Both variants are available with various contact type and terminal type designs to match system needs.
Panel Mount vs Inline Cable Couplers
A panel mount coupler integrates directly into control cabinets or distribution boxes, ideal for compact interface setups. Inline cable coupler models offer more flexibility and mobility in field installations, supporting wire & cable transitions across equipment.
IP66 and IP67 Rated Couplers
These IP-rated cable connectors offer different levels of environmental resistance:
- IP66 couplers resist dust and high-pressure water jets.
- IP67 couplers provide full immersion protection.
Such ratings make them essential outdoor cable connectors and marine cable connectors for harsh environment coupler applications. Within this specialised range of products, you’ll find wire connectors, battery connectors, and automotive connectors that support a wide range of applications — from industrial power setups to vehicle and mobile energy systems.
Voltage and Current Ratings
230V and 400V Coupler Applications
230V coupler units are standard for single-phase equipment, while 400V electrical connectors are designed for three-phase machinery and agricultural machinery. Choosing the correct operating voltage is crucial for power transmission reliability and device protection.
Current Ratings: 16A, 32A, 63A, 125A Explained
These values determine the high current coupler load capacity. Key breakdown:
- 16A & 32A: Common in workshops and warehouse power connectors
- 63A & 125A: Ideal for heavy duty electrical connectors in factory power coupler setups or energy storage systems
Safe Connections for High Power Loads
Electrical safety couplers are designed to minimize risks such as short circuits and overloads. Features such as phase rotation coupler functionality and angled design offer better handling in tight spaces, supporting secure connections and maximum safety.
Industry Applications
Construction and Mining Sites
Cable couplers for mining and construction site cable connectors demand rugged cable connection capable of withstanding dirt, vibration, and water. Their industrial design ensures reliable connection and safety features are maintained in dynamic and unpredictable environments.
Marine and Food-Grade Environments
Marine cable connectors and food-grade cable couplers must comply with strict hygiene and corrosion resistance standards. IP67 couplers are preferred here, ensuring the degree of protection meets regulatory needs.
Warehouses, Workshops, and Factory Floors
In industrial environments, factory power coupler and warehouse power connectors provide fast deployment and broad range connectivity across cable assemblies and control systems. Circular connector options are often used for signal connectors and automation interfaces.
Standards and Protection Ratings
Understanding IEC 60309 Compliance
IEC 60309 connectors are globally recognized for ensuring industry standards in electrical connectivity. This includes specifications for Contact Type, voltage color coding, IP-rated cable connectors, and degree of flexibility.
IP66 vs IP67: What’s the Difference?
- IP66: Full dust protection, resists strong water jets
- IP67: Same dust protection, plus submersion resistance
These classifications determine suitable applications in outdoor power connectors or industrial cable connectors exposed to environmental conditions.
Mechanical and Environmental Durability
Heavy-duty connectors are tested for impact, vibration, temperature variation, and chemical exposure. Push-in connection technology and robust housings enhance reliability in harsh conditions and wide variety of industrial applications.
Palazzoli Cable Coupler Solutions

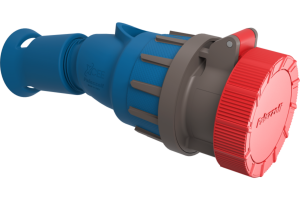

ROTOR and ROTOSWITCHED Coupler Series
Palazzoli’s ROTOR and ROTOSWITCHED coupler series are engineered for industrial environments requiring maximum safety and power connectors with angled design. These solutions support wire & cable integration with high ingress protection and industrial design for extreme settings.
X-CEE Safety Performance Range
The X-CEE connectors offer a reliable transmission platform with wide range options, including switched cable couplers and inline cable coupler models. Their compact design, safety features, and compliance with industry standards make them ideal for electrical systems in diverse conditions.
Why Choose Palazzoli for Industrial Applications
With a reputation for extensive range, Palazzoli cable couplers deliver exceptional electrical connection performance. Their emphasis on degree of flexibility, durability, and compliance places them among the top choices for industrial power systems.
Choosing the Right Electrical Coupler
Factors to Consider: Voltage, Poles, IP Rating
When selecting a cable coupler, evaluate:
- Voltage (e.g. 230V, 400V electrical connector)
- Phase and pole configuration (2P+E, 3P+N+E)
- Degree of protection (IP66, IP67)
- Application environment (e.g. agricultural machinery, control cabinets)
The right combination ensures secure connections and long-term performance.
Installation Tips and Safety Guidelines
- Always match wire & cable specifications with coupler ratings
- Use push-in connection or screw terminals based on current demands
- Verify contact type for compatibility
- Apply Safety Features such as lockout/tagout where required
Proper installation enhances maximum flexibility and extends cable coupler lifespan across industrial applications.
Any further questions? Feel free to contact us through our contact form!
